The CoreBox is a fully wired, shop-tested modular mining structure engineered for large-scale operations. Fabricated in our 40,000 sq. ft. Alberta facility and ready to deploy the moment it arrives on-site.
Fabricated around customer requirements, with flexible bay configurations that scale by project size.
200kW to 1.2MW Capacity
Built around customer needs, with configurations starting at 200kW and scaling up to 1.2MW.
Scalable by Design
Configured around customer needs, from small deployments to high-capacity mining operations.
Who is it for
Built for Operators Deploying at Scale
The CoreBox is designed for mining operators who are scaling rapidly, managing multiple sites, and need electrical distribution infrastructure that performs consistently across every deployment. If your operation demands tight lead times, certified equipment, and complete documentation, the CoreBox was built for you.
CloudCore has the capacity to support single-unit purchases through to large fleet deployments. Our team works with operators at every stage from initial specifications through to commissioning support.
The CoreBox. Designed for Serious Mining Operations.
From power inlet to each individual receptacle, our electrical distribution team engineers every CoreBox to handle the demands of high-density mining — ensuring reliable load distribution and consistent performance across every unit we ship.
Each CoreBox is a self-contained, air-cooled mining container built for fast deployment and long-term uptime. The modular design means your operation can be up and running quickly, with every electrical component spec'd, tested, and ready for continuous duty before it leaves our facility.
CoreBox Specifications
Physical
Dimensions
11’ min. to 40’ max. length (7’-5 ¾” wide, 9’-5 ⅜” tall)
Structural Building
Engineered build, not a shipping container
Insulated Interior
2” wall and ceiling insulation
Secure Access
Commercial-grade steel door with keyed lock
Miner Shelving
Adjustable aluminum shelves for air-cooled miners
Electrical
Power Capacity
200kW - 1.2 MW
SCCR
10 kA
Voltage
415V / 240V
Main Breaker
1600A ACB
Per Receptacle
15A / 3.6kW
Mechanical

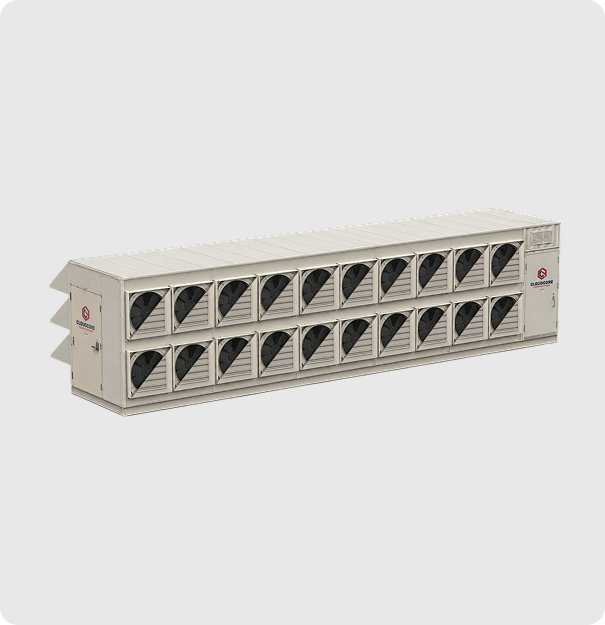

Air Extraction
36″ ¾ HP variable-speed extraction fans
Fan Configuration
8 fans across two bays up to 20 fan across 5 bays
Safety Guards
OSHA-compliant guards on each fan

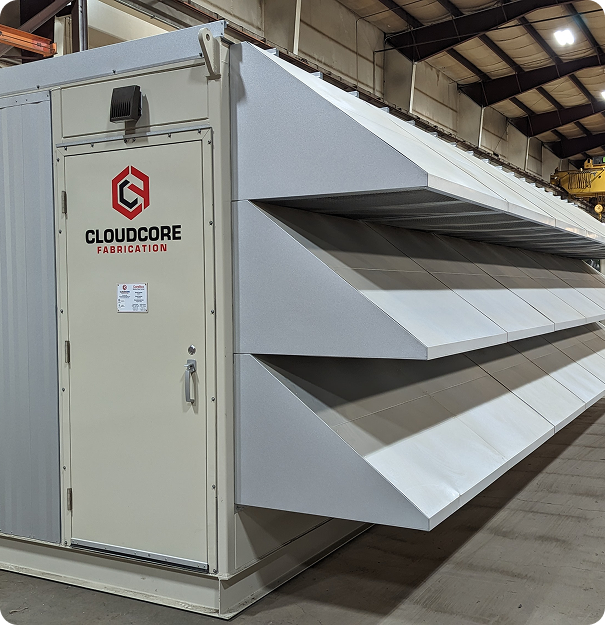

Air Intake
3 (8'x4'x3') Air intakes / Capacity for 24 Merv 8 filters
Certification & Installation
CSA Certified
CSA electrical and structural compliance
Documentation
Nameplate confirms CSA compliance
Skilled Installation
Alberta-certified journeymen and apprentices
Certified Welding
CWB-certified welders under certified supervision
Instrumentation Ready
Fully network wired and internet ready, with PLC monitoring for pressure, humidity, temperature, and fan speed.
Our World-Class Facilities
40,000 sq. ft. Manufacturing Facility
75 Ton combined overhead crane capacity
C&C Controlled Copper & Aluminum Bus Bar Machine
Built in Alberta with Industry Leading Technology
Certified to the Standards That Matter
CloudCore holds CWB certification under CSA W47.1, providing independent verification of weld quality across all fabrication. Our ISO 9001:2015 certification governs our quality management system from order intake through delivery, driving continual improvement and consistent results on every project.
Ready to Discuss Your Project?
Whether you're scoping a large-scale electrical distribution fabrication contract or exploring our modular power distribution solutions, our team is ready to talk.
