The CoreShelf Array is a fully wired, shop-tested modular mining shelf system engineered for large-scale operators. Fabricated in our 40,000 sq. ft. Alberta facility and ready to perform the moment it arrives on site.
Shop-Fabricated. Rapidly Deployed. Proven at Scale.
2.3 MW Modular Deployment
Ships in seven pre-engineered modules for simplified transport and installation.
4-Hour Site Assembly
Rapid onsite assembly by a small crew inside a free-standing building.
90% Less Field Labor
Factory-integrated construction reduces field labor while improving quality.
Who is it for

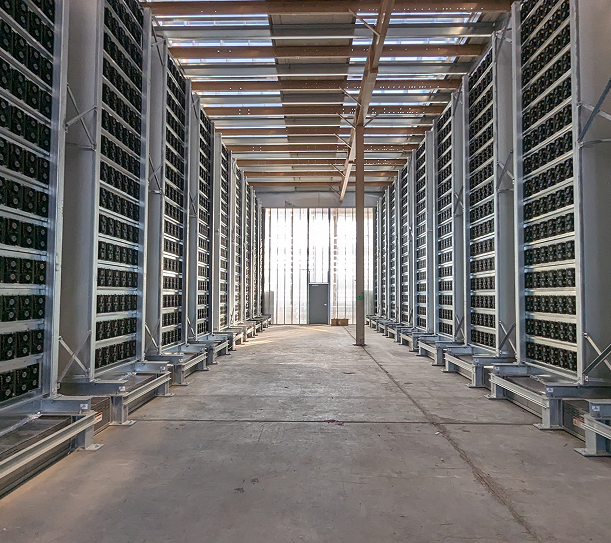

Built for Operators Deploying at Scale
The CoreShelf Array is designed for mining operators who are expanding rapidly, managing multiple sites, and need electrical distribution infrastructure that performs consistently across every deployment. If your operation demands tight timelines, certified equipment, and complete documentation, the CoreShelf Array was built for you. CloudCore has the capacity to support single-unit purchases through to large fleet deployments. Our team works with operators at every stage, from initial specification through to delivery and commissioning support.

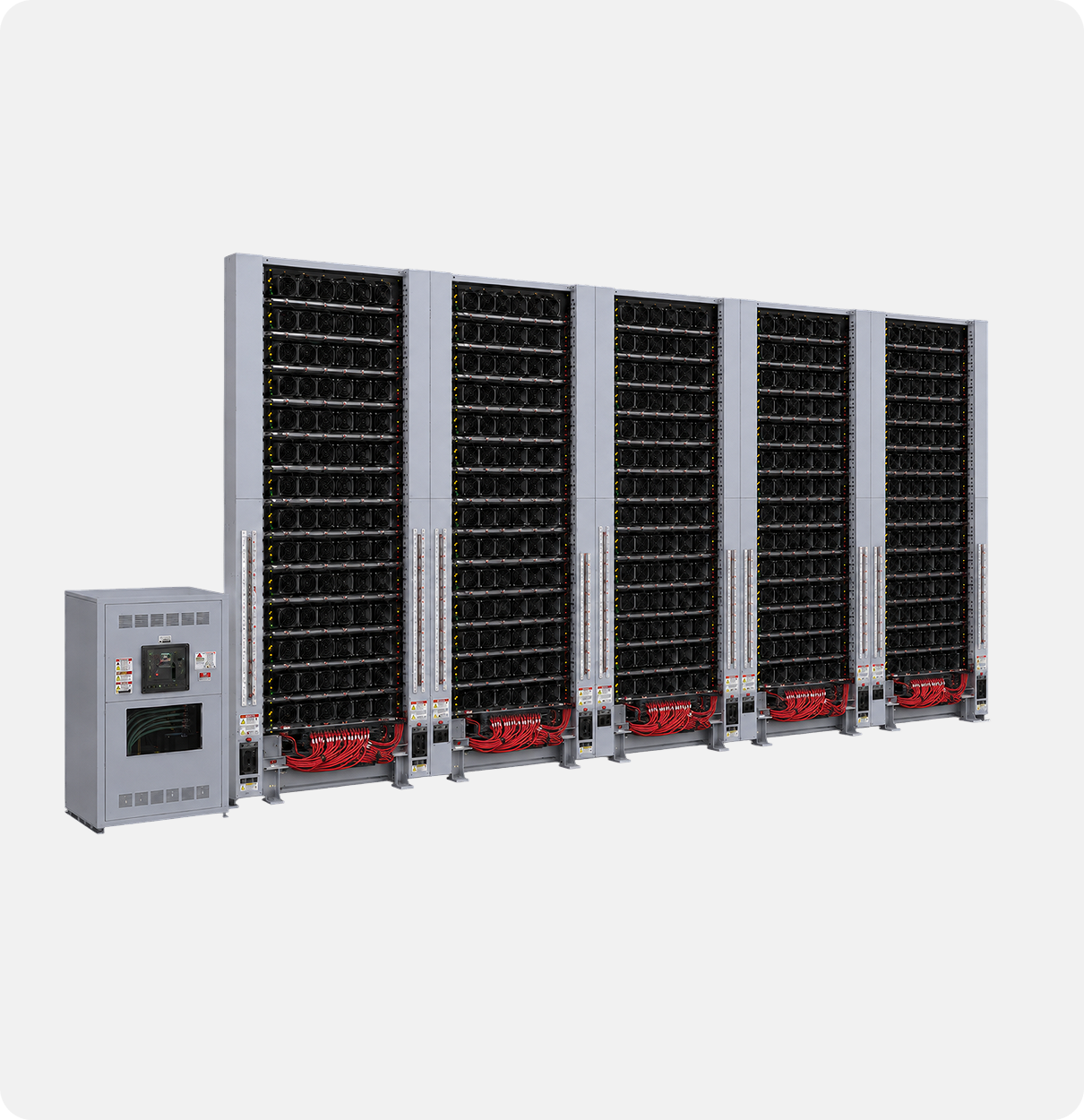

The CoreShelf Array.. Engineered for High-Density Operations.
Our electrical distribution team designs and fabricates from the main breaker through to each individual receptacle, bringing the same precision we apply to industrial switchgear and bus bar assemblies to every CoreShelf we build. Each CoreShelf Array. unit houses 630 S19 form factor miners in a compact, modular footprint. With 7 field-assembled modules, the system is designed for rapid onsite deployment with minimal labour requirements. Every electrical component is rated, certified, and matched to the demands of continuous high-load operation.
CoreShelf Array Specifications
Physical
Dimensions
23 ft Tall x 58 ft Long x 4 ft Wide
Total Weight (Empty)
Approx. 17,500 lbs
Site Assembly Components
7
Miner Capacity
Over 600 Air-Cooled Miners
Adjustable Racking
Suited for any Air-Cooled ASCI Miner
Structure design incorporates
Hot and Cold delineation
Network Ready
Fully Network Wired and Internet Ready
Electrical
Power Capacity
2 Megawatts
SCCR
65 kA
Voltage
415V / 240V
Main Breaker
3200A ACB
Sub-Breakers
400A MCCB (10)
Branch Breakers
20A UL 489 MCB (650)
Per Receptacle
15A / 3.6kW
Our World-Class Facilities
40,000 sq. ft. Manufacturing Facility
75 Ton combined overhead crane capacity
C&C Controlled Copper & Aluminum Bus Bar Machine
Built in Alberta with Industry Leading Technology
Certified to the Standards That Matter
CloudCore holds CWB certification under CSA W47.1, providing independent verification of weld quality across all fabrication. Our ISO 9001:2015 certification governs our quality management system from order intake through delivery, driving continual improvement and consistent results on every project.
Ready to Discuss Your Project?
Whether you're scoping a large-scale electrical distribution fabrication contract or exploring our modular power distribution solutions, our team is ready to talk.
